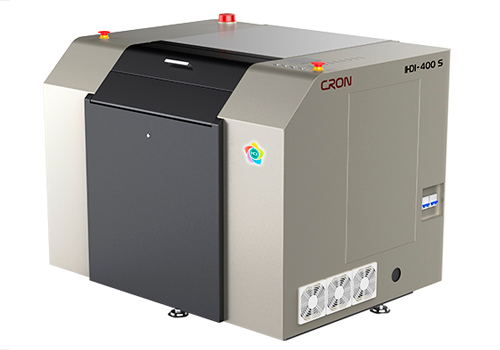

HDI-400

CRON HDI-400 specially designed for high quality narrow web/label printing.
Configured with the advanced CRON laser optical system, CRON HDI-400 reliably provides accurate high definition label prints.
The new CRON HDI-400 is now the first choice for label printers due to its easy operation, image performance, and stability.

Model

HDI-400S

HDI-400S+

HDI-400H

Max size
Min size

430 × 560 mm (17 × 22 inch)
100 × 100 mm (3.9 × 3.9 inch)

Plate loading

Manual mounting, Auto loading

Resolution

4000 dpi or 4800/5080 dpi

4000/8000 dpi or 4800/5080/9600 dpi

# S series speed

1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi

# S+ series speed

1.0~1.8 m2/h (3.7~2.0J/cm2) 4800/5080 dpi
1.0 m2/h (3.7~2.0J/cm2) 9600 dpi *

# H series speed

2.0~4.5 m2/h (3.7~2.0J/cm2) 4800/5080 dpi
2.0~2.4 m2/h (3.7~2.0J/cm2) 9600 dpi **

Plate type

Digital flexo plate, Letterpress, Ablative film

Plate thickness

0.11mm ~ 3mm

Net weight

500 kg

Power supply

Single phase 220V ± 5% 50/60Hz

Rated Power

4.3 KW

Dimension

1160×900×950 mm (W×L×H)

Environment

18~28℃; RH: 40%~60%

# The speed data in this sheet is for the Max. size.HDI-400 series' maximum peripheral length is 560mm
* When the plate making accuracy is 9600dpi, the maximum output of 2.0mm is not more than 1.1m2/h.
** When the plate making accuracy is 9600dpi, the maximum output of 2.0mm is not more than 1.7m2/h.
CRON reserves the rights to modify or change the design and technical parameters without notifying in advance.
