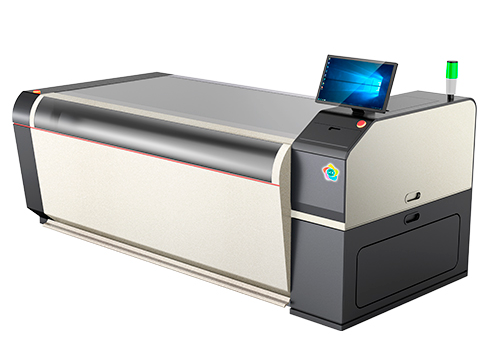

HDI FLEXO 2000

CRON HDI-2000 series is now the very first choice for flexible packaging and corrugated markets.

CRON HDI-2000 accommodates the common size of 50”*80'' flexo plates.

Equipped with CRON's dual clamping systems, HDI-2000 greatly assists trade shops in efficiency improvement.

Template driven auto-control of resolution, power setting, drum balance, and auto-focus from 0.11 – 6.35mm (.250") thick material.

Model

HDI-2000S

HDI-2000S+

HDI-2000H

HDI-2000H+

Max size
Min size

2032 × 1270 mm (80 × 50 in)
200 × 200 mm (7.9 × 7.9 in)

Plate loading

Manual mounting, Auto loading

Resolution

4000 dpi or 4800/5080 dpi

4000/8000 dpi or 4800/5080/9600 dpi

# S series speed

1.0~2.4 m2/h (4.5~2.0J/cm2) 4800/5080 dpi

# S+ series speed

1.0~2.4 m2/h (4.5~2.0J/cm2) 4800/5080 dpi
1.0~1.6 m2/h (4.5~2.0J/cm2) 9600 dpi

# H series speed

2.0~4.6 m2/h (4.5~2.0J/cm2) 4800/5080 dpi
1.6~2.4 m2/h (4.5~2.0J/cm2) 9600 dpi

# H+ series speed

3.8~4.6 m2/h (4.5~2.0J/cm2) 4800/5080 dpi
2.84 m2/h (4.5~2.0J/cm2) 9600 dpi

Plate type

Digital flexo plate, Letterpress, Ablative film

Plate thickness

0.11mm ~ 6.35mm

Net weight

2800 kg

Power supply

Single phase 220V ± 5% 50/60Hz

Rated Power

6KW

Dimension

2810×1400×1125 mm (W×L×H)

Environment

18~28℃; RH: 40%~60%

# The speed data in this sheet is for the Max. size.HDI-2000 series' maximum peripheral length is 1270mm
CRON reserves the rights to modify or change the design and technical parameters without notifying in advance.

Specifications Brochure
